Tutorial Two:
Create a Detail View

In this tutorial, we're going to enhance the List View created in Tutorial One by adding a way to view the details of a user's record. As with the first tutorial, we'll keep it as simple as possible, so you can see the basic steps involved in the process and then be able to apply those concepts to other tutorials and projects.

WARNING

Using XMod Pro, you will be interacting directly with your live data source. You should BACKUP your data beforehand to prevent the accidental loss or corruption of data due to typos and other unforeseen circumstances.

Please recall the columns in the Users table:

• UserID
• Username
• FirstName
• LastName
• DisplayName
• Email

There are some other fields and different versions of DNN may have slight variations but we'll focus on just these. It's also important to note the capitalization of the field names as you will need to match it exactly when referring to that field: 'UserID' is not the same as 'UserId' or 'userid'.

1. If you haven't done so already, open the page we created in the first tutorial and ensure you're logged in as Host or SuperUser.

2. We're going to edit the view we created in the first tutorial. Open the Control Panel, find AllUsers in the Explorer (Views tab), and click it to open it in the View Editor.

3. Let's first review the view code:

   <xmod:template>
     <ListDataSource CommandText="SELECT UserID, DisplayName
                                  FROM Users ORDER BY DisplayName ASC" />
     <HeaderTemplate>
       <ul>
     </HeaderTemplate>
     <ItemTemplate>
       <li class="Normal">[[DisplayName]] ([[UserID]])</li>
     </ItemTemplate>
     <AlternatingItemTemplate>
       <li class="Normal"><strong>[[DisplayName]] ([[UserID]])</strong></li>
     </AlternatingItemTemplate>
     <FooterTemplate>
       </ul>
     </FooterTemplate>
   </xmod:template>

4. From this starting point, we will need to add a data source to use for our detail record and also provide a link the user can click to see that user's details. Finally, we'll need to add a <DetailTemplate> that tells XMod Pro what to display for the user's details. All of this will be added to our current view definition. As in the first tutorial, we'll take a look at the individual bits and put them together for you at the end. Let's get started.

   1. <DetailDataSource CommandText="SELECT UserID, Username, FirstName,
                                     LastName, DisplayName, Email
                                     FROM Users WHERE UserID = @uid" />

      This tag is a bit more complicated than the ListDataSource tag because we need to accept a parameter that identifies which user's details to display. So, we are selecting our full list of fields from the Users table (remember, you may need to modify this with a database owner and/or object qualifier depending on how your DNN database is configured). We use the WHERE clause to specify we only want the user that has a UserID equal to the value of the "uid" parameter. Remember the "uid" parameter name. We'll need to use it in the next step.

   2. <xmod:detaillink text='[[DisplayName]]'>
        <parameter name="uid" value='[[UserID]]' />
      </xmod:detaillink>

      This tag is placed in the <ItemTemplate> tag and displays as a hyperlink, using the user's Display Name as its text. This is done using the field token to retrieve the value of the DisplayName column. It is important to note at this point that whenever you use any of XMod Pro's tokens as the value of an attribute for non-HTML tags, you MUST delimit them with single quotes (') rather than the customary double quotes ("). Don't worry about XHTML validation because these tags are processed on the server.

      When the link is clicked, XMod Pro will execute the command specified in <DetailDataSource>, passing it any parameters defined in the tag. You define parameters by using the <parameter> child tag. In our case, we want to pass the detail data source a parameter whose name is "uid" and whose value is the value in the UserID column for the current record. As with the "text" attribute in the detail link tag, we specify the "value" attribute, using the [[UserID]] field token, delimited by single quotes.

      We'll repeat this for the <AlternatingItemTemplate> tag.

   3. <DetailTemplate>
        <h1>Details for: [[DisplayName]]</h1>
        <p>
          <strong>UserID:</strong> [[UserID]]<br />
          <strong>Username:</strong> [[Username]]<br />
          <strong>FirstName:</strong> [[FirstName]]<br />
          <strong>LastName:</strong> [[LastName]]<br />
          <strong>Email:</strong> <a href="mailto:[[Email]]">[[Email]]</a>
        </p>
        <xmod:returnbutton text="Back to Users List" />
      </DetailTemplate>

      Finally, we need to tell XMod Pro how to display the user's details. Just as we added <HeaderTemplate>, <ItemTemplate> and the like, we'll add a <DetailTemplate> tag and fill it with our HTML and field tokens. You've seen much of this already. There are two points to note.

      First, notice the display of the user's email. We're enabling the page's visitor to click a standard HTML "mailto" link to launch their email client to send an email to the user. It was stated earlier that when using field tokens as attribute values, you should delimit them with single quotes, but I didn't do that here. Single-quote delimiters are ONLY required when dealing with server-based controls like many of the xmod tags. You can use double quotes in HTML tags, to help maintain XHTML compliance.

      Second, we've introduced another new tag: <xmod:returnbutton>. This is a specialized button that, when clicked, will return the user to the previous page. Without it, the user would be essentially stuck on the detail view. This tag could be replaced with <xmod:returnlink> or <xmod:returnimage> if you wanted to render a hyperlink or clickable image, respectively.

   4. Your updated view code will look like the following:

      <xmod:template>
        <ListDataSource CommandText="SELECT UserID, DisplayName FROM Users ORDER BY DisplayName ASC" />
        <DetailDataSource CommandText="SELECT UserID, Username, FirstName,
                                       LastName, DisplayName, Email
                                       FROM Users WHERE UserID = @uid" />
        <HeaderTemplate>
          <ul>
        </HeaderTemplate>
        <ItemTemplate>
          <li class="Normal">
            <xmod:detaillink text='[[DisplayName]]'>
              <parameter name="uid" value='[[UserID]]' />
            </xmod:detaillink> ([[UserID]])
          </li>
        </ItemTemplate>
        <AlternatingItemTemplate>
          <li class="Normal"><strong>
            <xmod:detaillink text='[[DisplayName]]'>
              <parameter name="uid" value='[[UserID]]' />
            </xmod:detaillink> ([[UserID]])</strong>
          </li>
        </AlternatingItemTemplate>
        <FooterTemplate>
          </ul>
        </FooterTemplate>

        <DetailTemplate>
          <h1>Details for: [[DisplayName]]</h1>
          <p>
            <strong>UserID:</strong> [[UserID]]<br />
            <strong>Username:</strong> [[Username]]<br />
            <strong>FirstName:</strong> [[FirstName]]<br />
            <strong>LastName:</strong> [[LastName]]<br />
            <strong>Email:</strong> <a href="mailto:[[Email]]">[[Email]]</a>
          </p>
          <xmod:returnbutton text="Back to Users List" />
        </DetailTemplate>
      </xmod:template>

5. Click Save (or press Ctrl+S) to save your changes.

6. Your list display should look something like this (though your list of users may be different and your site's style may be different):

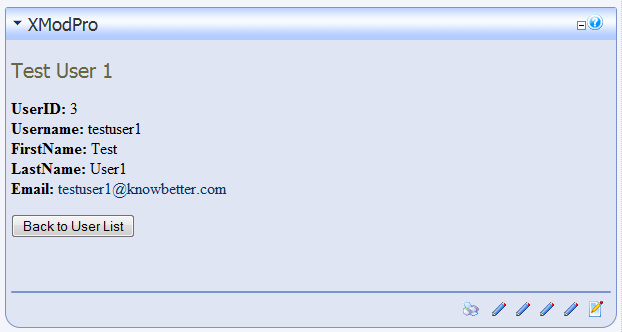

7. Click on one of the links and your detail view should look similar to this:
